1-1/2 Inch PVC True Union Ball Valve, Full Port Slip Socket Valve | UPVC Body With EPDM O-Rings, PTFE Seat, Slip Socket Connection, 150 PSI Pressure Rating, Pool And Irrigation Use
Product details
| Management number | 247461611 | Release Date | 2026/08/16 | List Price | US$9.20 | Model Number | 247461611 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- UPVC MATERIAL: Double ball valve has a PVC body that weighs less than valves made from metals, saving cost and accelerating the project for the easy installation. and it has EPDM O-rings for good resistance to weathering, ozone, UV, electricity, oils, water, steam, and some solvents. The PTFE seat resists chemicals, moisture, and high temperatures.
- SOCKET SLIP(GLUE OR PRIMER ON ONLY): This valve includes socket weld connections with an internal recess on each inside diameter to allow for a smooth bore and better fluid flow,150 PSI - Socket connecting to two pipes going in the same direction. The maximum pressure rating of 150PSI at41℉max131°F.For cold water use.
- FULL PORTL: True union construction for in-place valve, This valve connects two pipes going in the same direction and has true union connections that allow an in-place valve. It has a full port for reduced friction; the inner diameter of the valve is the same as the inner diameter of the pipes it connects to enable maximum operating efficiency.
- EASY TO OPERATE:1/4 turn operation for long-lasting.It is used in non-critical chemical applications, water treatment, and swimming pools. Ball valves use a spherical disc to control the flow between pipes, tubes, or hoses. 2pcs EPDM O-rings and 2pcs PTFE seats for long-lasting, superior performance. TWO UNION can be removed and installation is very simple.

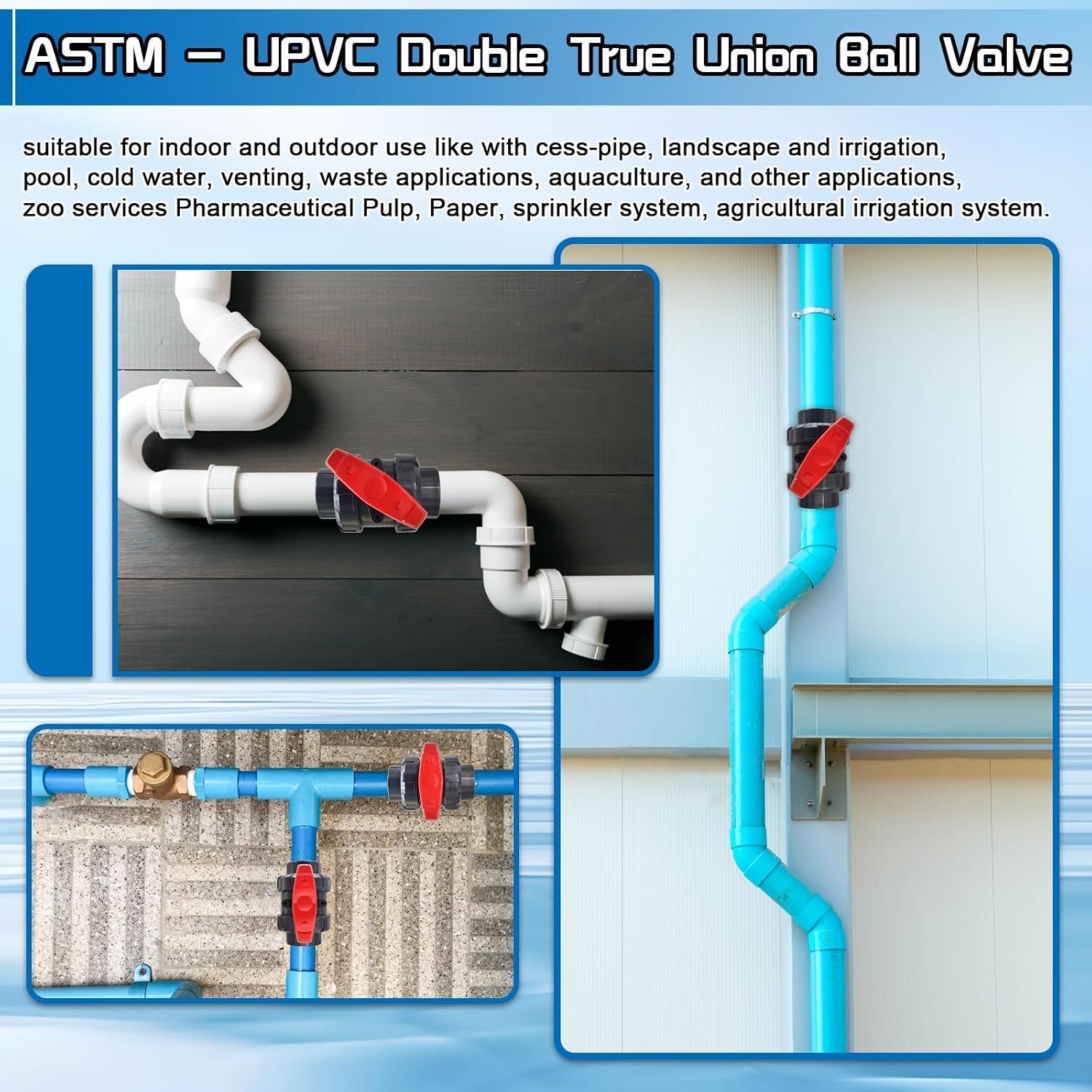

- APPLICATION: ASTM - UPVC Double True Union Ball Valve, suitable for indoor and outdoor use like with cess-pipe, landscape and irrigation, pool, cold water, venting, waste applications, aquaculture, and other applications, zoo services Pharmaceutical Pulp, Paper, sprinkler system, agricultural irrigation system.
| ASIN | B09ZTTVZ31 |
|---|---|
| Size | 1 1/2 inch |
| Brand Name | FANOVO |
| Unit Count | 1 Count |
| Valve Type | Ball Valve |
| Thread Size | 1 1/2 inches |
| Thread Type | Socket Weld |
| Manufacturer | FANOVO |
| Model Number | 1 1/2" |
| Material Type | Polyvinyl Chloride (PVC) |
| Connector Type | Socket |
| Exterior Finish | Pvc |
| Number of Items | 1 |
| Number of Ports | 2 |
| Maximum Pressure | 150 psi |
| Number of Pieces | 1 |
| Specification Met | ASTM |
| Included Components | EPDM O-Ring*2 |
| Inlet Connection Size | 1.5 inches |
| Inlet Connection Type | Full port |
| Outlet Connection Size | 1.5 inches |
| Outlet Connection Type | Sweat |
