14x14 Water to Air Heat Exchanger 1" Copper Ports With Install Kit

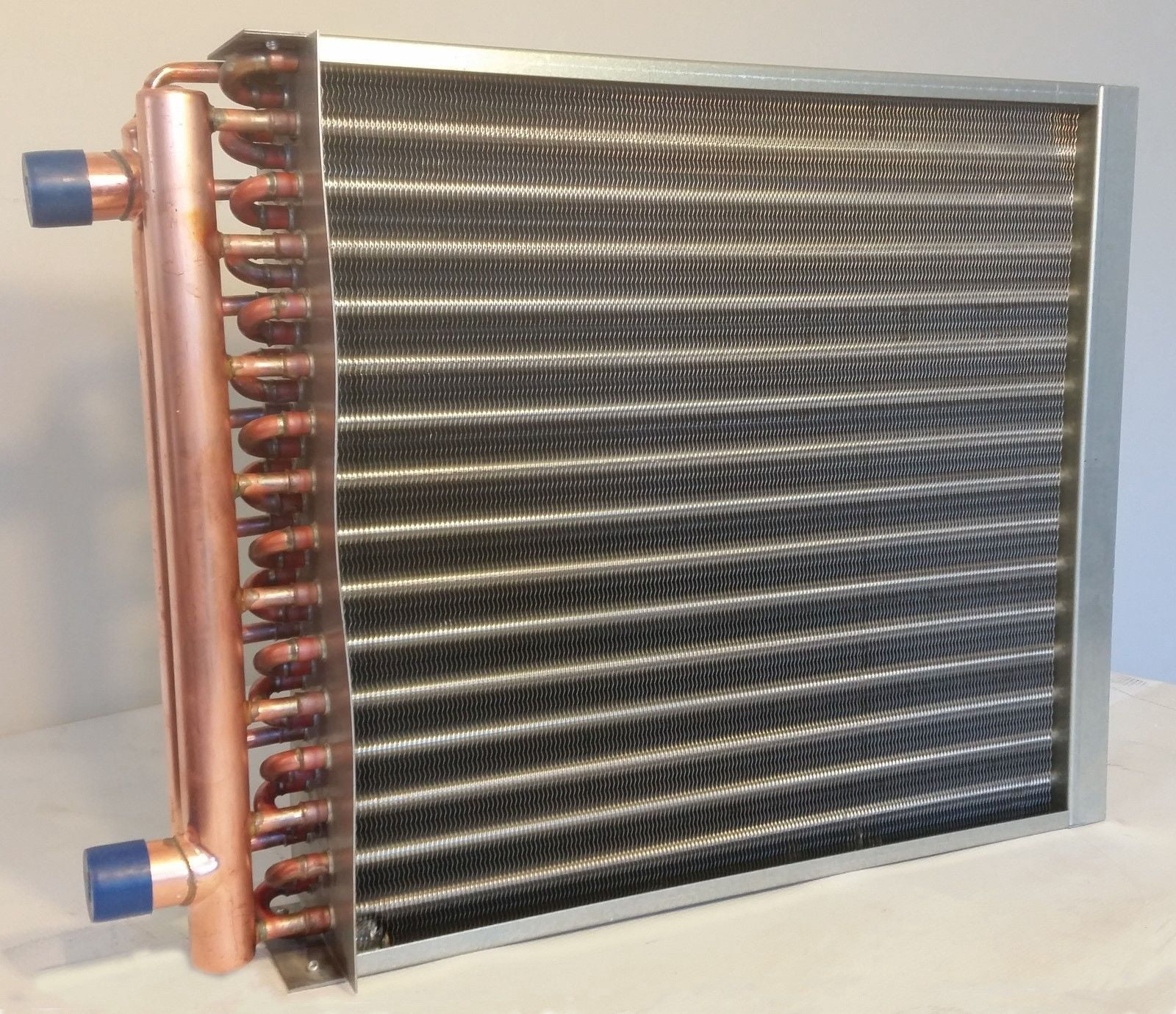

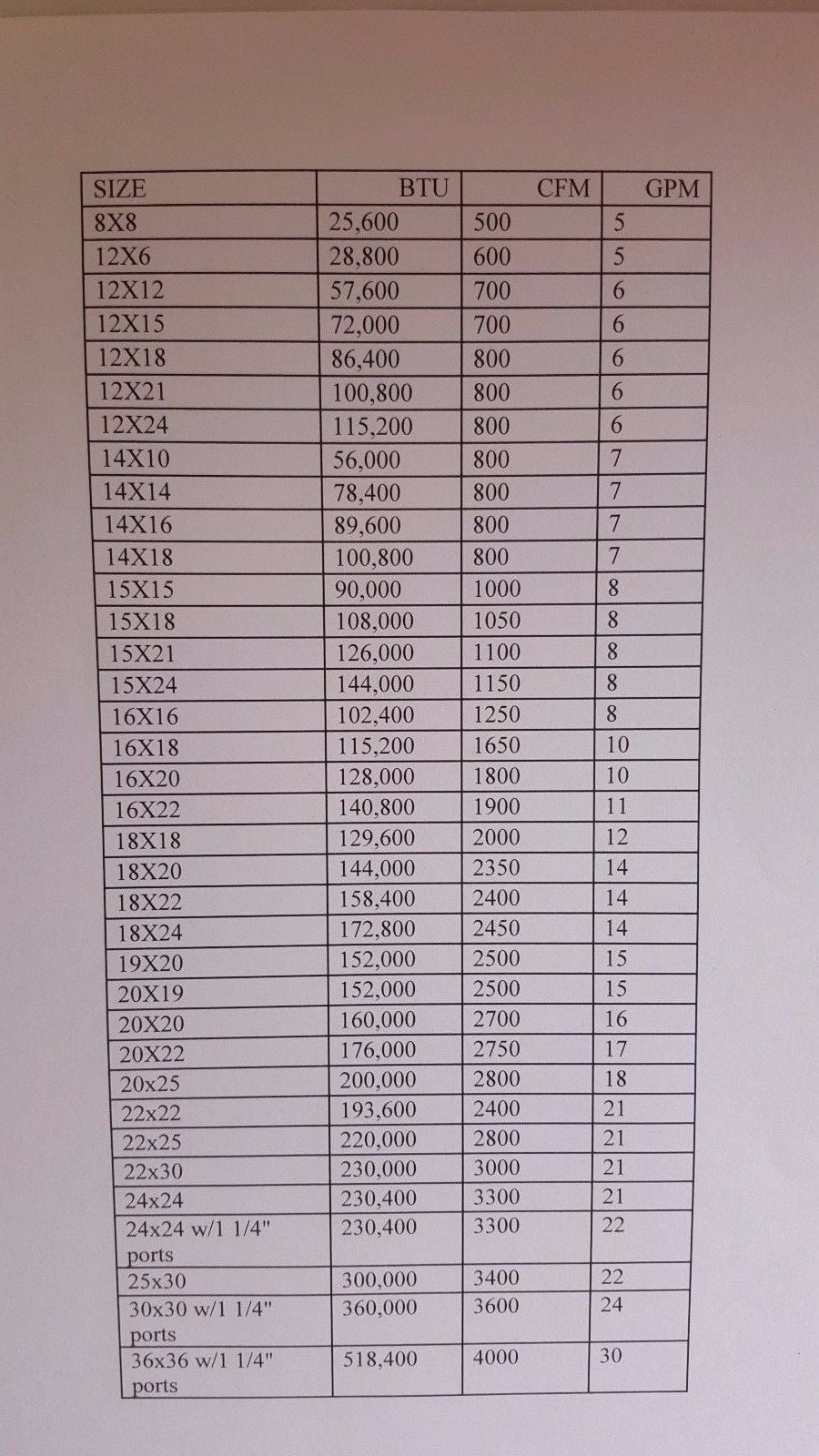

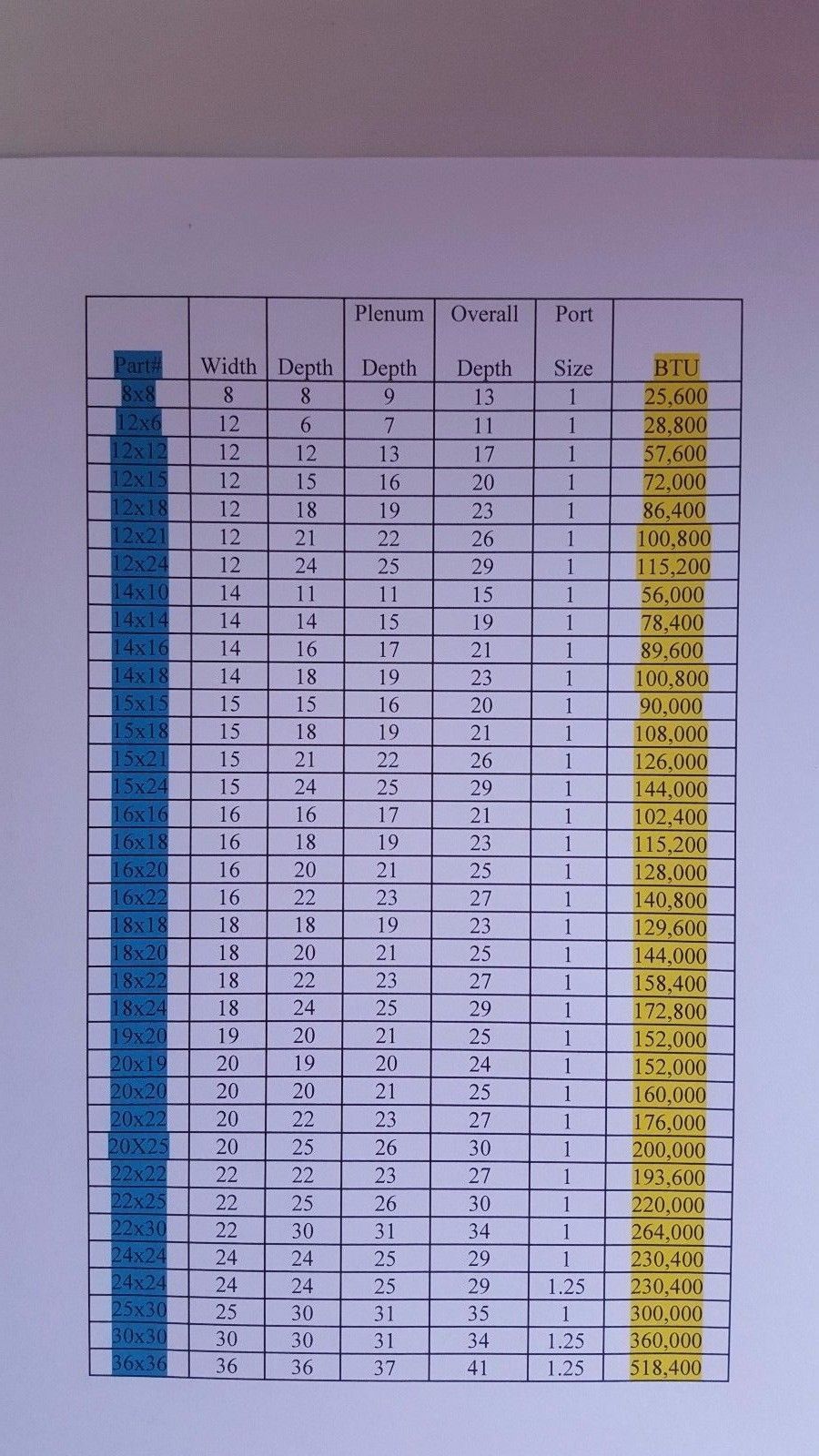

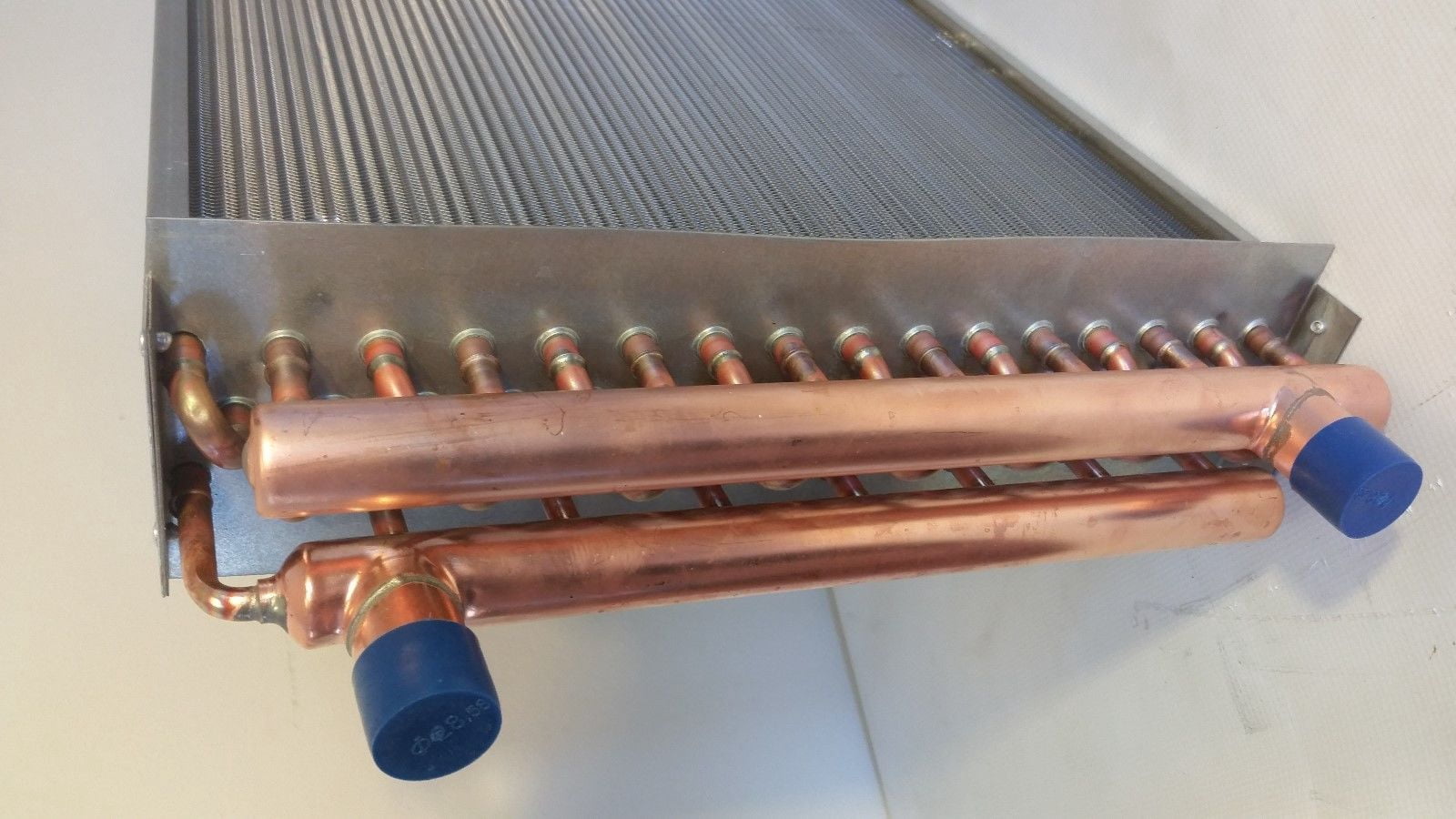

<div align="center"></div><p align="center"><span face="Times" style="font-family: Times;"><strong><u>14x14 78,400 BTUs/ 100 PSI</u></strong></span>For use in yourhot air furnace plenum.</p><p align="center">Other sizes available.</p><p align="center">Please see charts in pics above</p><p align="center"><strong>***Not recommended for air compressors***</strong></p><p align="left"><strong></strong></p><p align="left"><strong>This listing includes the install kit.</strong></p><p align="left"><span size="5" style="font-size: x-large;"><strong><u>Information about our heat exchangers</u></strong></span></p><ul><li><div align="left"><strong>This heat exchanger is ideal for a 14"x15" plenum or larger.</strong></div></li><li><div align="left"><span style="font-family: 'Times New Roman', serif; font-size: 13.5pt;"><b>The outlets come out on the 14" side (shown as the vertical side in the picture above) </b></span></div></li><li><div align="left"><strong>The fin area is 14"x14"</strong></div></li><li><div align="left"><strong>There is a 1" frame on the end opposite the outlets that covers the copper elbows. This makes the area inside of your plenum 1" longer.</strong></div></li><li><div align="left"><strong>All exchangers are 3 1/2" thick.</strong></div></li><li><div align="left"><strong>Aluminum fins are installed at 12 fines per inch.</strong></div></li><li><div align="left"><strong>All exchangers are triple pass design.</strong></div></li><li><div align="left"><strong>Tubing is 1/4" copper.</strong></div></li><li><div align="left"><strong>All our exchangers include the flat front face mounting for easier installation and increased plenum strength.</strong></div></li><li><div align="left"><strong>Our exchangers have 1" copper outlets and can be installed with either sweat fittings or push fit type fittings like sharkbite's.</strong></div></li><li><div align="left"><strong>Exchangers from us come with a lifetime warranty, including shipping.</strong></div></li><li><div align="left"><strong>Exchangers will work with chilled water also.</strong></div></li><li><div align="left"><strong>We stock many sizes, always order the largest size that will fit into your plenum.</strong></div></li></ul><p>This also includes the installation kitshown in the pictures above.</p><p>Installation brackets for installing water to air heat exchangers inside of furnace plenums. This easy to install kit takes all of the work out of installing a coil. Great for the do it yourselfer or the seasoned installer.</p><p>This kit will work with most coils being sold on other sites that are 3.5" wide. Check before you buy, but that will cover over 90% of the ones being sold. Even most that are listed as 4" are actually 3.5". These will work with every heat exchanger being sold elsewhere and our website store.</p><p>We provide a <strong><u>lifetime warranty</u></strong> against manufacturer's defects and corrosion.</p><p><strong>Dealer inquiries welcomed.</strong></p><h3>These heat exchangers are to be hooked up to a boiler or a chilled water source.</h3><p>These heat exchangers can also be usedas a stand alone heat source by simply attaching a fan or squirrel cage to one side of the unit. They can be installed in either the hot air side or the cold air return of a furnace.</p>
