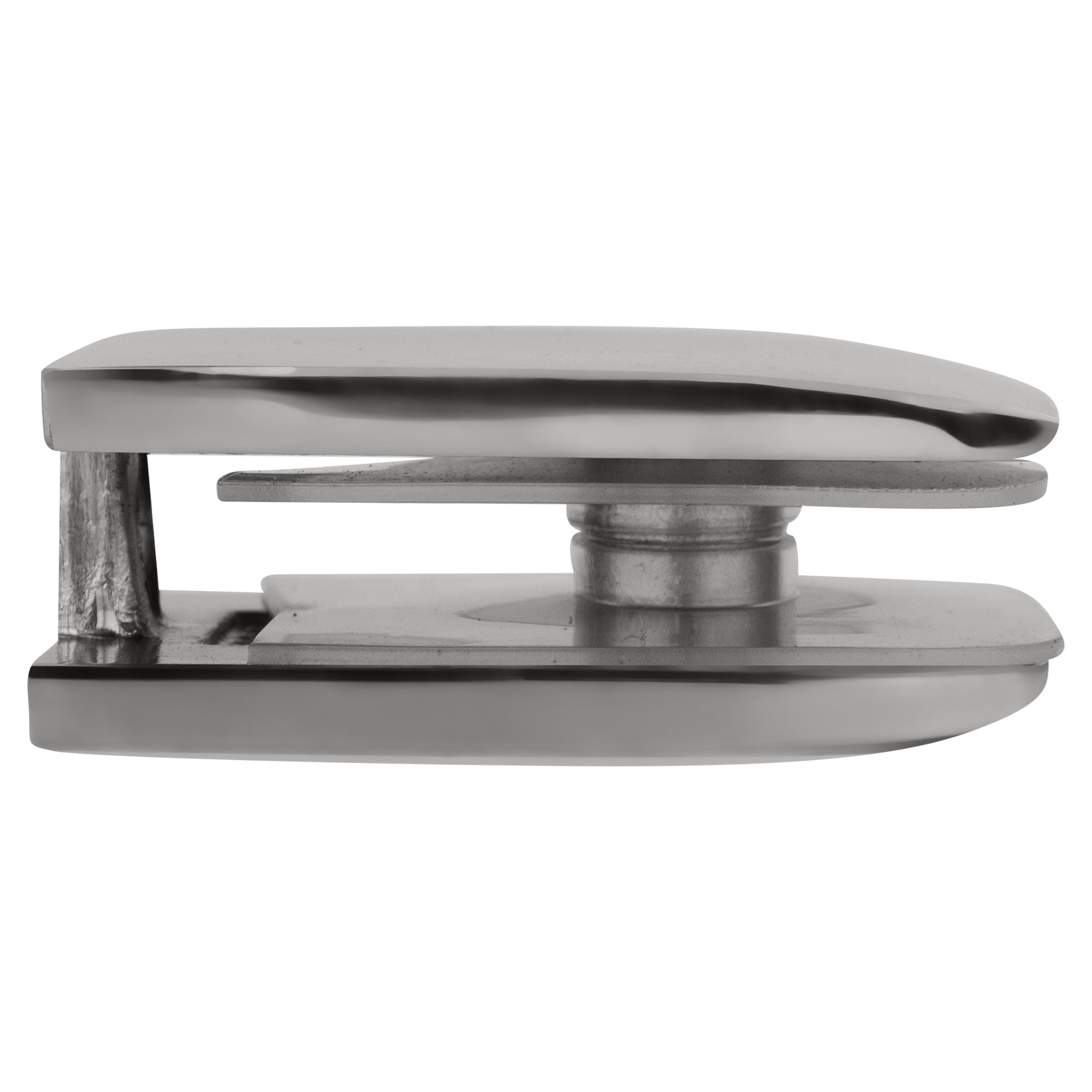

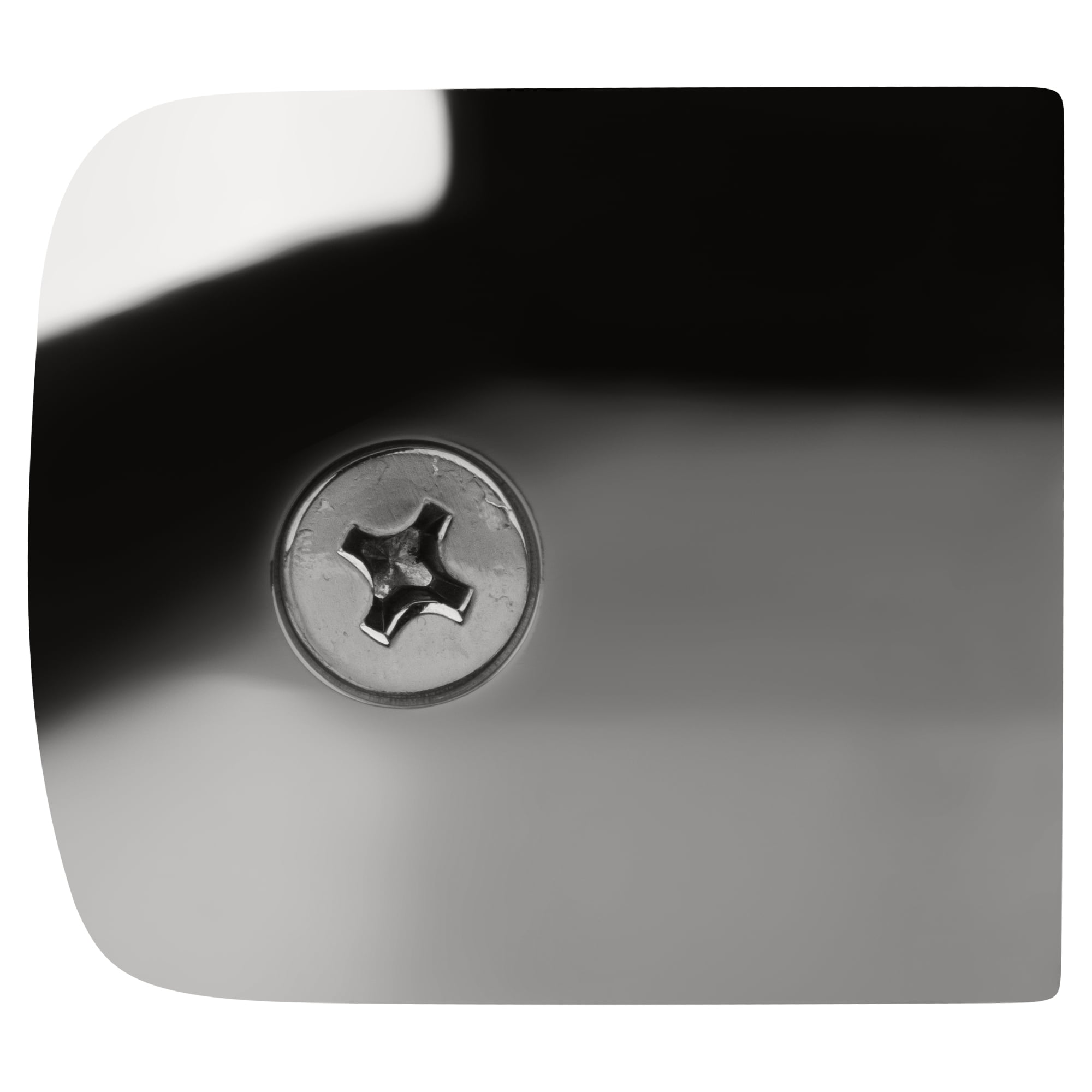

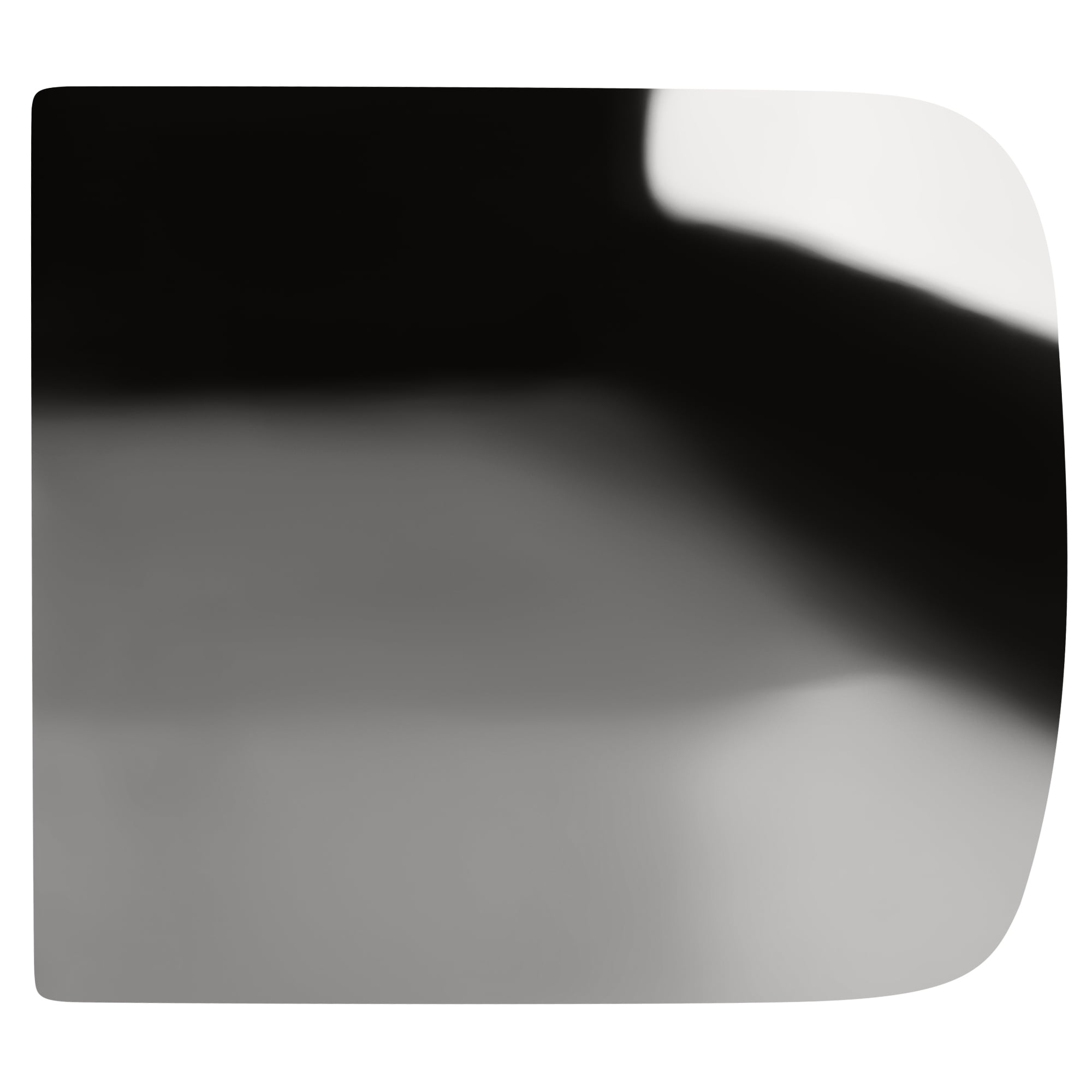

CRL R0M79CH Polished Chrome Roman Series Fixed Panel U-Clamp

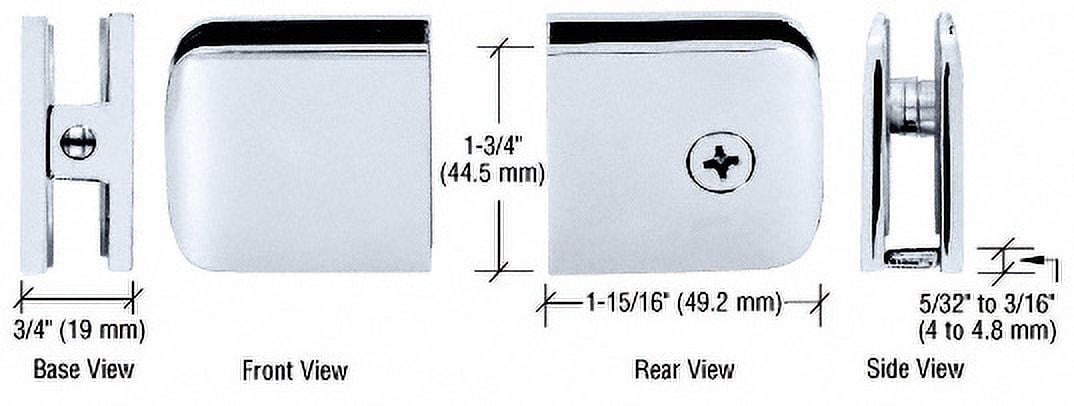

<br>CRL Roman Series Fixed Panel U-Clamps are used to secure fixed panels of glass to walls, floors, and ceilings. The rounded corners give the clamp a "softer" design and creates a classy look. One mounting screw per clamp is included. They perform the same function as our Standard Fixed Panel U-Clamps. They are especially recommended for 1/2" (12 mm) thick glass installations where a hole drilling measurement of 1-1/2 times the glass thickness (from the edge of the glass to the closest edge of the hole) is required. Custom finishes are available on request by contacting DK Hardware Sales Shower Door Department.<br>SPECIFICATIONS:<br>Glass Thickness: 5/16" to 1/2" (8 to 12 mm)<br>Material: Solid Brass<br>Includes: Gaskets and Mounting Screw <br>Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm)<br>NOTE: An additional set of gaskets is required for 5/16" (8 mm) glass (Cat. No. UCG77).<br><br>Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

• Use Monolithic Tempered Glass
• Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
• Solid Brass
• A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
• Glass Fabrication Required to Accommodate Clamps
