Wavlink 5K@60Hz Quad Display USB-C Docking Station, Compatible with MacBook Neo 18-in-1 Laptop Dock 100W charging for MacBook & Windows with 4 DP, 4 HDMI, 2.5G Ethernet, SD/TF, USB-C (PD30W, No Data)

<b>WAVLINK 5K@60Hz Quad Monitor USB-C Docking Station</b><br>● This universal docking station is an ideal choice for large enterprises and designers, it can provide you 4 displays output with 5120 x 1440@60Hz resolution; 2.5Gbps Ethernet giving you to high bandwidth networking; the SD4.0 Card Reader supporting UHS-II SD card as full duplex mode theoretical speed up to 312MB/s.<br>● One Type-C cable connection, which can provide up to 100W of Power Delivery 3.0 charging for your computer during data transmission. For USB-A connection, computer without PD function. For downstream charging, one USB-C port provides up to 30W charging for your Pad / Mobile phone or any USB-C devices support USB PD charging.<br>● One USB3.1 Type-A (10G), three USB3.0 Type-A (5G) ports to extend more connectivity to USB devices and one 4-pole earphone jack combo with audio out and mic in basically satisfy a lot of users' needs.<br><br><b>Features:</b><br>1. This universal docking station works with USB Type-C, Thunderbolt 3 &amp; compatible with USB-A computers.<br>2. 180Watt Power adapter provide maximum 100W power delivery to charge your computer.<br>3. Mirror &amp; Extend mode to connect multiple screens: Quad DisplayPort or Quad HDMI or multiple DP + HDMI displays for easy deployment.<br>4. HDMI or DisplayPort output support audio 5.1 Channel surround-sound.<br>5. One USB3.1 Type-A (10G) supports BC1.2 fast charging and max 10Gbps data transmission and three USB3.0 Type-A (5G) ports extend more connectivity to USB devices.<br>6. 2.5G Ethernet network RJ-45 backward 10/100/1000 Ethernet.<br>7. Integrated TRRS 4-pole phone jack to give audio speaker out and mic in.<br>8. One USB-C individual 30W PD charging port for any USB-C devices supports USB PD charging.(No data transmission)<br>9. Integrated SD V4.0 Card Reader with SD/Micro SD slot support UHS-II theoretical bus speed up to 312MB/s.<br>10. Supports Windows7/8/8.1/10/11(32/64-bit), Mac OS 10.8-12.x or later, Chrome OS, Android &amp;Ubuntu.<br><br><u><b>【Warm Tips:】</b><br>-The dock is self-powered and needs to be connected to the power adapter to work normally.<br>-This dock works with Thunderbolt 3 laptops with maximum 10Gbps data transfer rate, cannot reach 40Gbps.<br>-The extend or mirror mode can only be performed by connecting to the computer through the USB-C (host) port.<br>-When we use the USB-C to C cable with USB-A converter, the computer cannot be charged through the USB-A interface.<br>-In each video stream group you can only use one port, either "DP++" or "HDMI". If you plug in both HDMI and DP within the same video stream, DP will be working, HDMI will not.<br>-Offering 100W USB power delivery on PD 3.0, you can power laptops and other peripherals through your dock. Making sure that your laptop complies with USB PD charging and supports 100W charging power.<br>-Resolution up to 5120*1440@60Hz when plug either "DP" or "HDMI" port within the same stream and the latest driver needed. Links to the latest driver will be provided on our official website. Make sure your display supports 5120*1440 resolution.<br>-Requirements for dual 5K(5120*2880@60Hz): connect the left two or the right two DisplayPort together to provide up to 5120*2880@60Hz resolution to a single display. The display needs to have 2 DP input ports and supports 5120*2880@60Hz resolution and refresh rate. Windows PC required. MAC DO NOT SUPPORT 5120*2880@60Hz resolution.</u><br><br><b>Reliable Security:</b> Integrated lock slot accommodates standard security locks to safeguard equipment from being taken by others(the security lock is not included).<br><br><b>2-in-1 Audio &amp; Mic:</b> If you need to use headset or microphone often, the Audio &amp; Mic 2-in-1 port is what you need with crystal-clear audio output and mic input.<br><br><b>100W Power Delivery:</b> Supports up to 100W pass-through charging so that you can power your laptop at full speed. Eliminate "Low Battery Anxiety" from your life!<br><br><b>30W PD Quick Charging:</b> Refill your phone or tablet at blazing fast speeds with 30W PD output through the front USB-C port, 6x faster than 5V/1A chargers.<br><br><b>Multifunctional USB3.1 Port:</b> USB3.1 port provides effortless data transfer up to 10Gbps and supports BC1.2 and Apple 2.4A fast charging.<br><br><b>SD/TF Card Reader:</b> SD/TF card can be used at a speed up to 312MB/s, capacity up to 2TB, easy to transfer photos or videos from cards to laptop in seconds.<br><br><b>Triple USB3.0 Ports:</b> Connect your peripherals including a mouse, keyboard, USB flash drive, SSD, etc. via the high speed USB3.0 port for data transfer of up to 5Gbps.<br><br><b>Package Lists:</b><br>- USB-C Quad Display 4K@60Hz Universal Dock<br>- 2-in-1 USB-C to USB-C Cable with USB-A Converter<br>- DC20V/9A 180W Power Adapter<br>- AC Power Cable<br>- User Manual<br>- Paper made CD (driver linkage)<br>

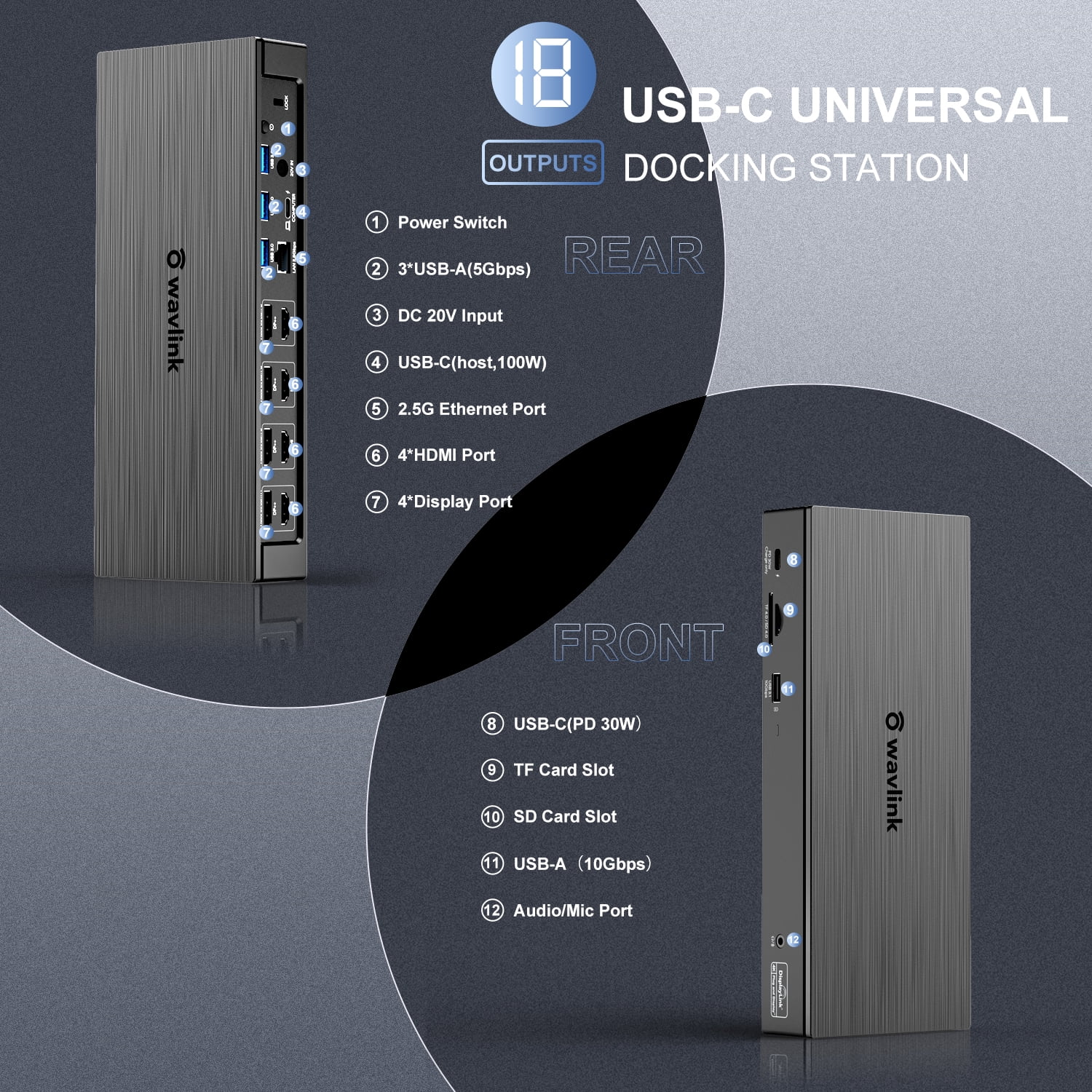

• ‌【⭐18-in-1 Docking Station】: Equipped with eight maximum 5K(5120*1440)@60Hz HDMI/DP++ outputs, 100W host PD charging, 2.5Gbps RJ45 Ethernet connection, SD/TF card reader, PD 30W USB-C port(charge only), three USB-A ports(5Gbps), USB-A port(10Gbps), 2-in-1 Audio&Mic.
• 【⭐HD Quadruple Display】: Mirror or extend your screens to external four HDTVs, monitors or projectors with resolution up to 5K(5120*1440) at 60Hz via HDMI or DP++ port. Give you vivid 3D effect video sync. {*Note: In each video stream group you can only use one port, either "DP++" or "HDMI" and the latest driver required to achieve 5120*1440@60Hz resolution.}

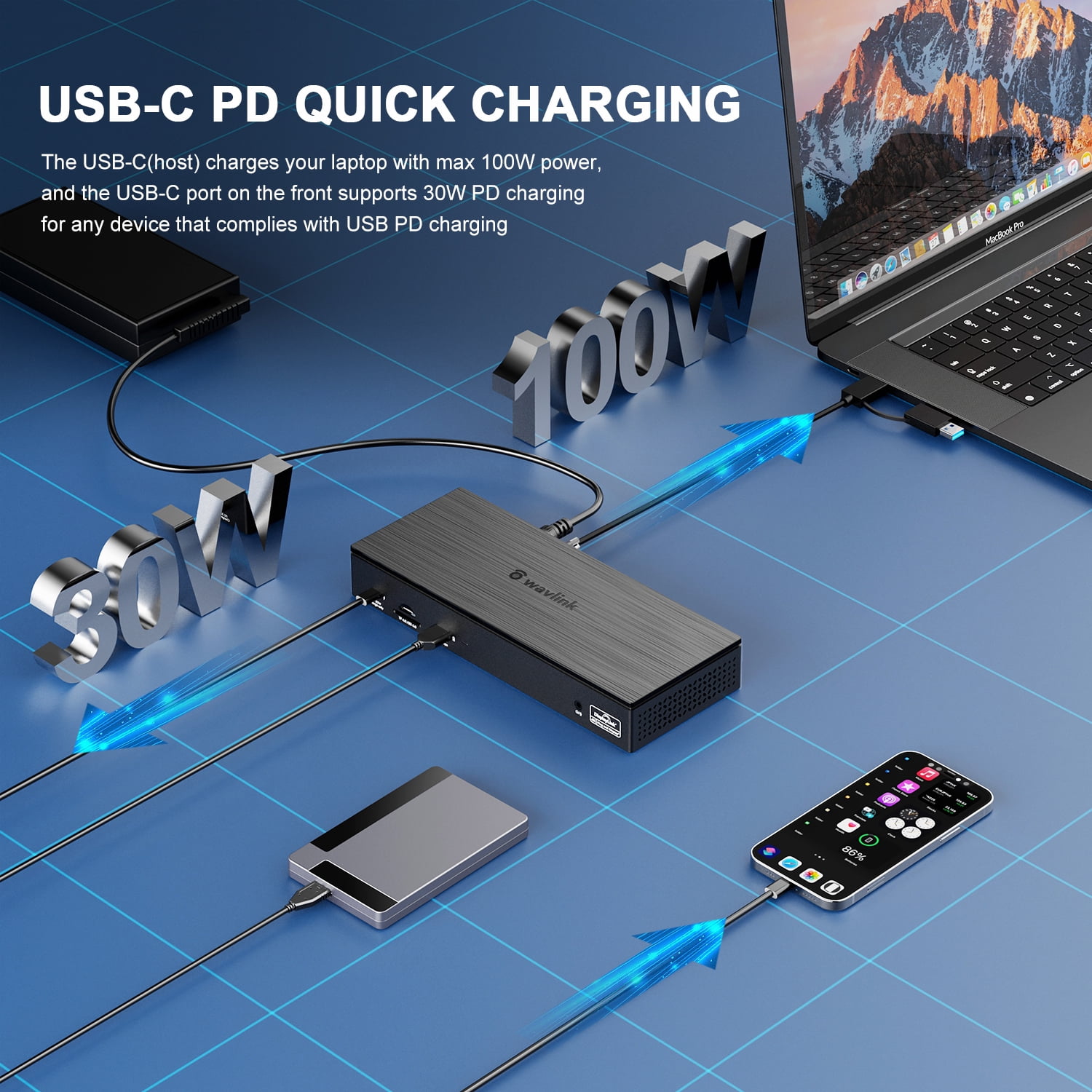

• 【⭐Integrated Charging】: Come with a 180W power adapter, this usb c dock can charge your laptop up to 100W via the USB-C connector, and charge your type-c devices up to 30W via the PD port simultaneously. {Tips: Please make sure the USB-C port of your device supports power delivery; The USB-C port on the front side does not support data transfer.}

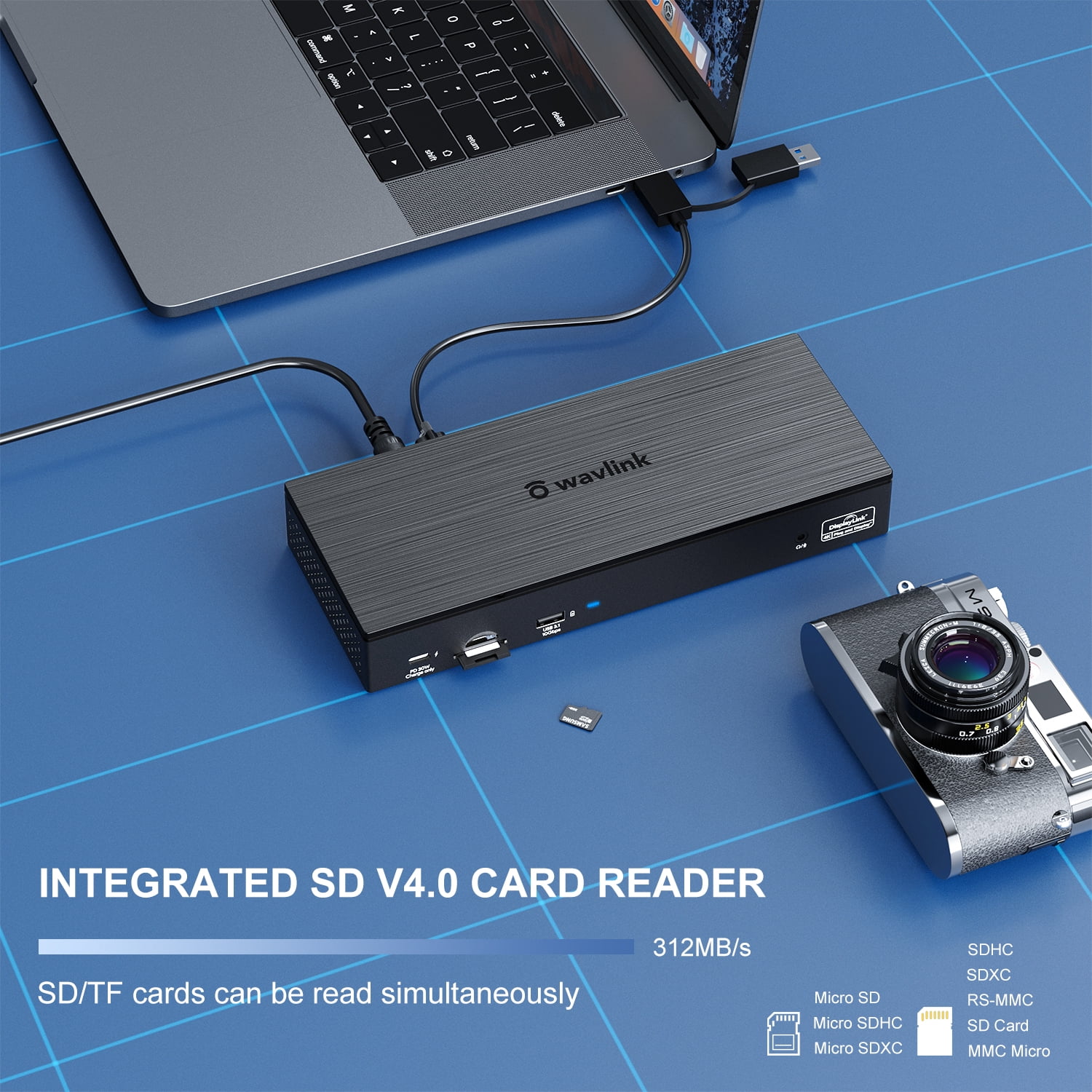

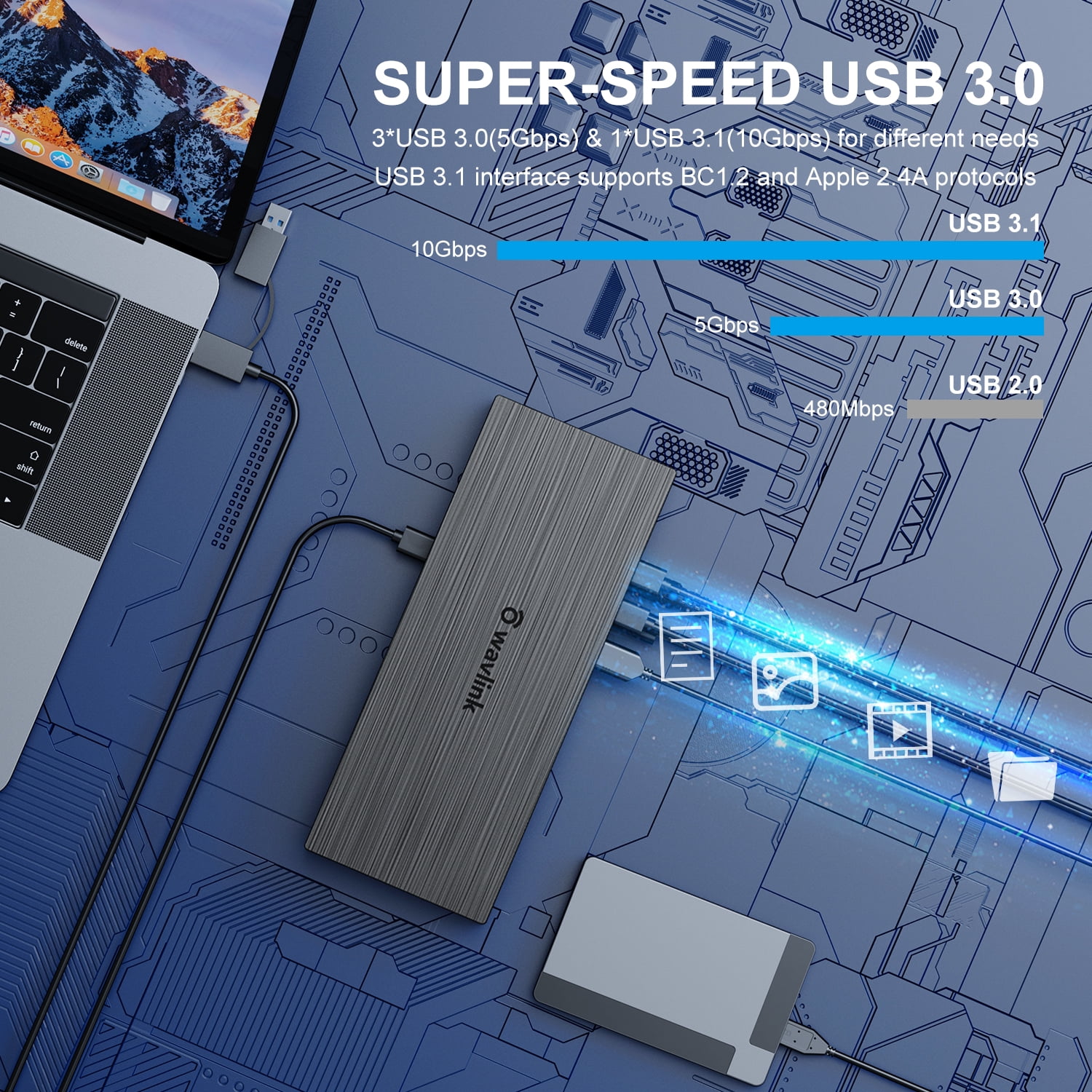

• 【⭐Ultra-High Speed Data Transfer】: 3 USB3.0 ports provide effortless data transfer up to 5Gbps. The USB3.1 port offers 10Gbps data transmission and supports BC1.2 and Apple 2.4A fast charging. SD/TF card slots with max 312MB/s enable to work simultaneously and support different memory card formats.

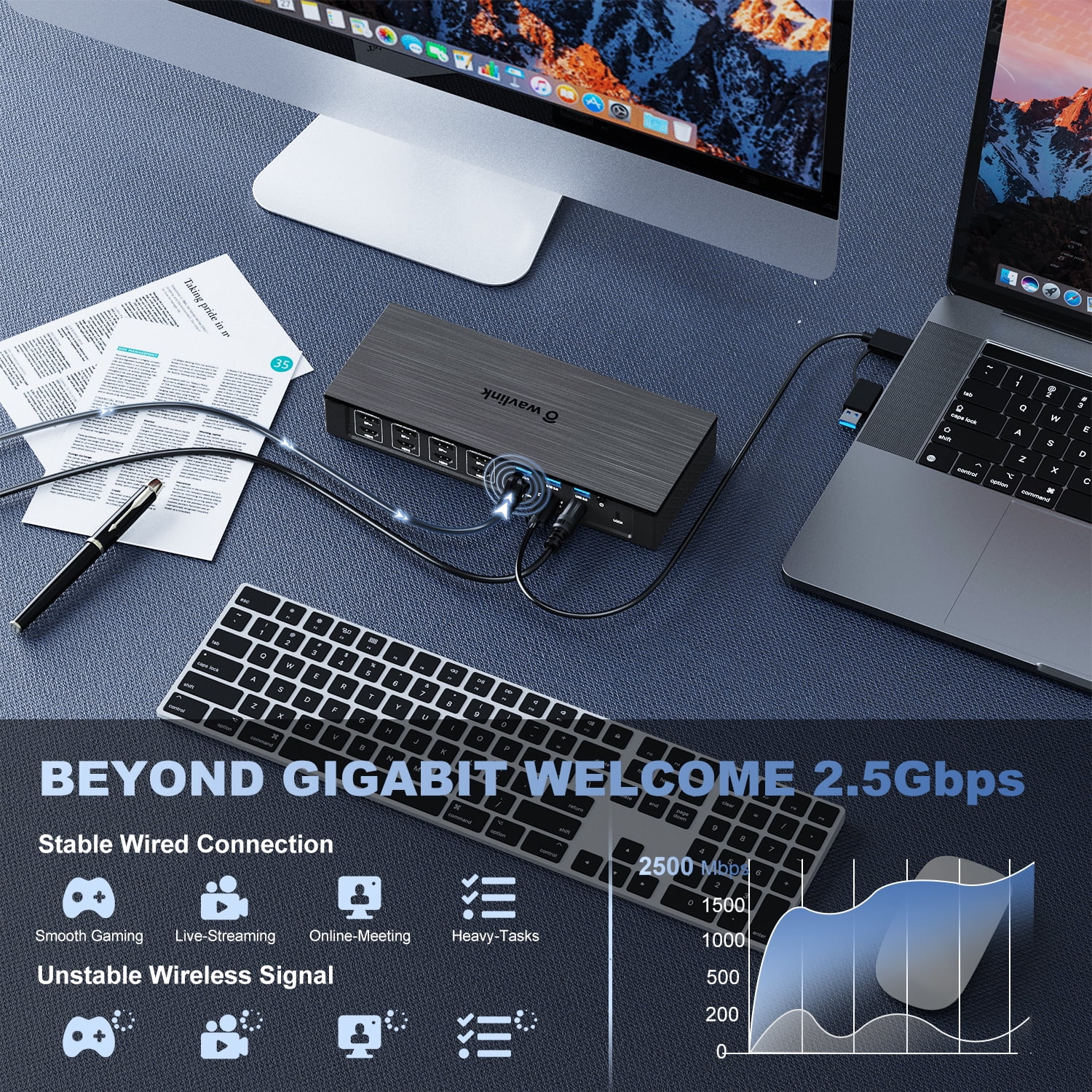

• 【⭐Stable Internet & Wide Compatibility】: Up to 2.5Gbps high-speed wired connection ensures a more secure and stable network performance. A great solution for wireless problems such as dropped signals, spotty connections. Backward compatible with 10/100/1000Mbps. Windows 7/8/8.1/10/11, Mac 10.8-12.x or latest, Chrome, Android, Ubuntu systems supported.
